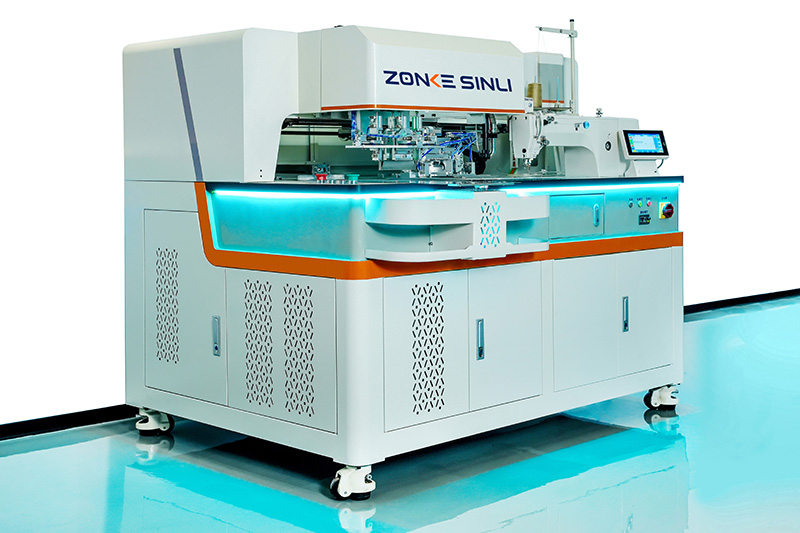

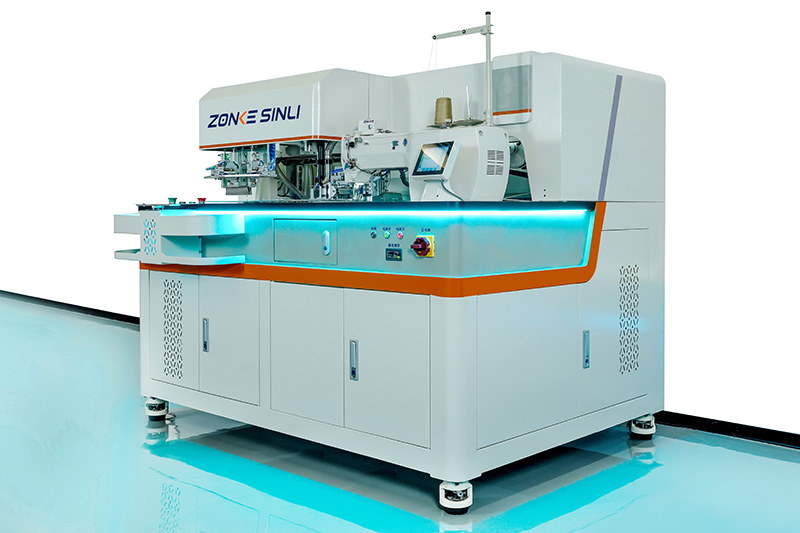

Z6 Automatic Laser Pocket Welting Machine

INQUIRE NOW

Application: real pocket, fake pocket, single lip pocket, double lip pocket, zipper pocket.

Machine head sewing speed	200-3000 rpm
Equipped with machine head shuttle hook type needles
Needle	DP:*17
Sewing stitch programming	Operation screen input mode
Stitch editing and storage capacity	Can store 999 patterns
Stitch length	1.0mn--3.5mm
Presser foot lifting height	30mm
Sewing pocket range	X direction 50mm--207mm
Sewing pocket range	Y direction 8mm--35mm
Sewing pocket speed	13 seconds per dummy pocket, 19 seconds per real pocket
Pocket folding method	Four-direction, four-side folding
Pocket opening method	Laser cutting
Laser power	120W
Thread breakage induction	Intelligent thread breakage induction
Bobbin thread detection	Bobbin thread detection function, no empty stitches, no waste pieces, no broken needles
Material placing method	Three-dimensional bag closing, two-way three-dimensional bag closing, no shaking during bag closing, no displacement during edge folding, rework rate < 0.3%
Sewing working mode	Pocket folding and sewing carried out simultaneously
Fabric feeding drive mode	Servo motor drive
Bottom bag sewing	Secondary sewing mode
Quick-reaction pocket folding technology	Pneumatic folding knife, thickness self-adaptation, suitable for any fabric sewing
Stable material pressing throughout the process, Fabric feeding operations reduced by 20%, efficiency improved by 20%
Extra-large space	Operating space increased by 93%, making piece placing more efficient
